Scrap Lift Passing Conveyor
The unit is to separate the engraved dough pieces from the dough sheet and return the scrap dough to the hopper by return conveyor.
— ♦ Application ♦ —

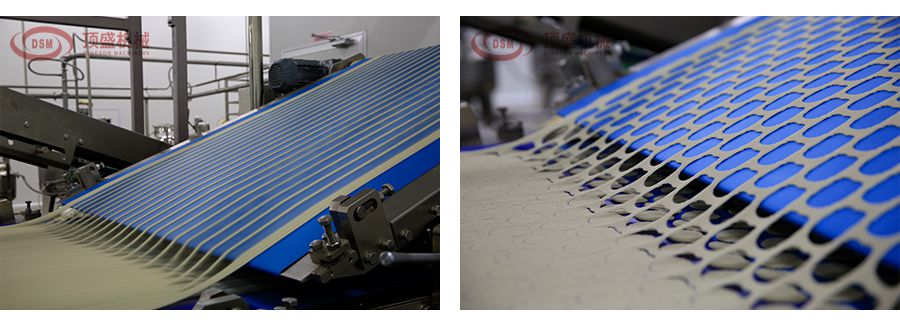

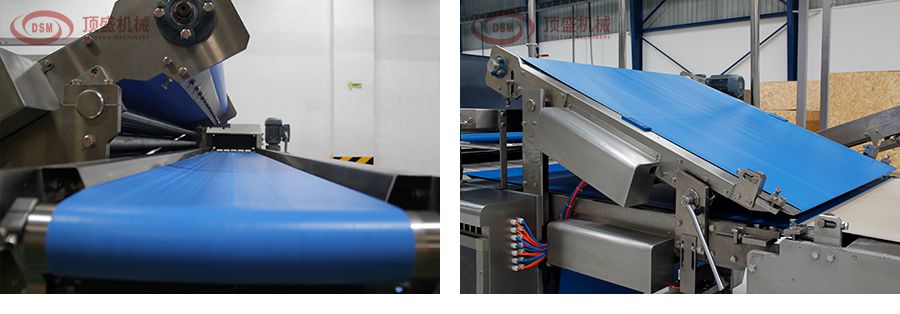

The scrap lift and return conveyor is connected to the output of rotary cutter. After the rotary cutter engraved and cut the formed biscuit shape on the running dough sheet, the unit separate the engraved dough pieces and the sheet by a lifting conveyor. The dough pieces are continuously sending to the downstream equipment, when the scrap sheet is lifted up and take over by a return conveyor. The scrap sheet will be cut into pieces by a cross cutter and feed back to the hopper by a reciprocating conveyor.
— ♦ Specification ♦ —
| Main electrical components | Telemecanique |
| Drives and geared motor | SEW |
| Inverter | Danfoss |
| Main bearing | NSK |
| Touch screen monitor | Siemens/Schneider |
| Control | PLC Cascade Control System;Independent drive and variable speed control;Pneumatic tension and tracking |
| Material | Stainless steel;Patterned polyurethane coated synthetic material belt |
| Rolls’ gap indicator | ELESA+GANTER (Italy) |
| Certification | ISO, FM Global, CE |
| Origin | China |
| Trademark | DSM |
If you have some problems about Scrap Lift Passing Conveyor,Complete Biscuit Production Machine,Cookie Biscuit Production Line, Hard Or Soda Biscuit Production Line,etc. Welcome to contact us!
Looking forward to your inquiry.
